SH-PH-093

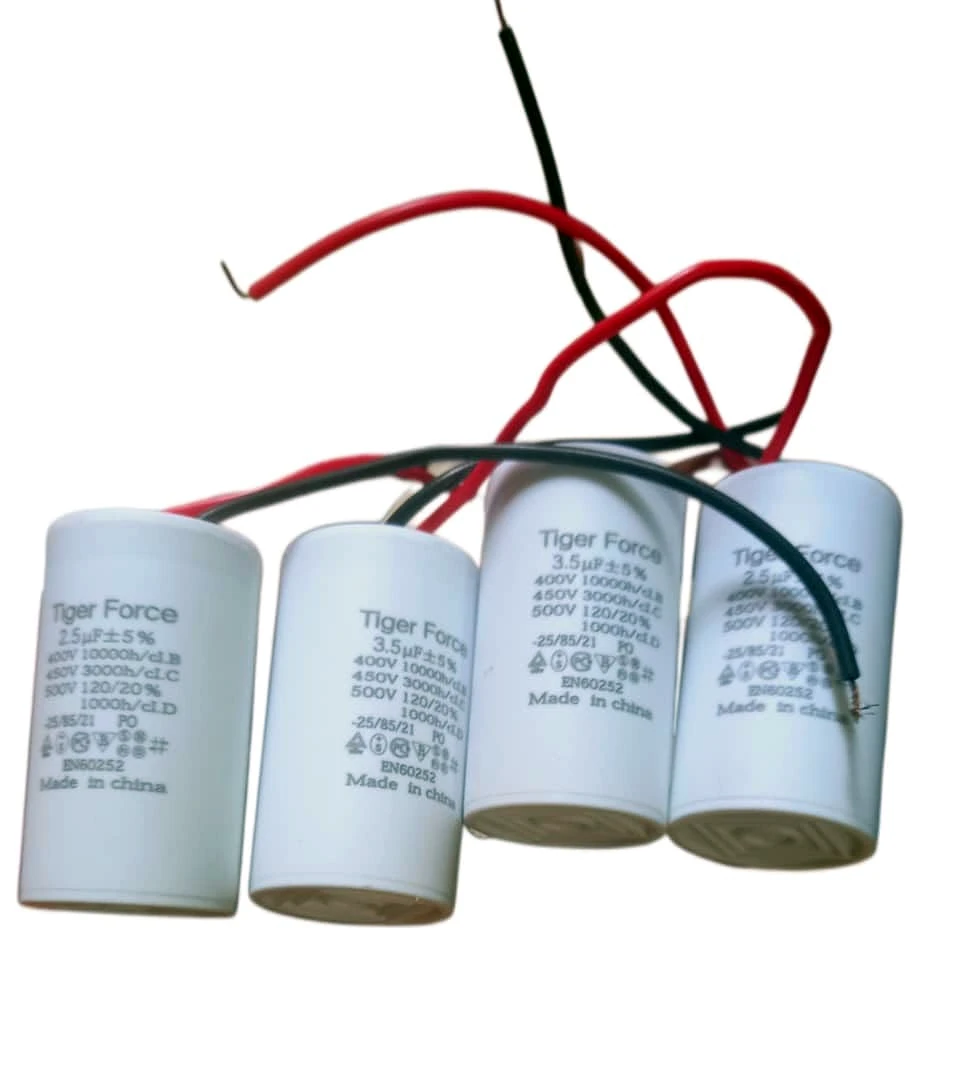

Motor run capacitor, CBB60 type, with flying leads
Tiger Force · Electrical, Motors and Automation
Cylindrical run capacitors for single phase motors on pumps, fans and compressors, supplied with flying leads so they drop straight into a replacement. Marked to EN 60252 with 10000 hour and 3000 hour class ratings on the case.
Confirmed on the quotation: Other capacitance values are supplied to order.
Refrigeration and HVACWorkshop and MaintenanceManufacturing
Specification
| Reference | SH-PH-093 |
|---|---|
| Type | CBB60, run capacitor |
| Values | 2.5 µF and 3.5 µF, ±5% |
| Voltage | 400 V / 450 V / 500 V |
| Standard | EN 60252 |
| Termination | Flying leads |
