SH-PH-094

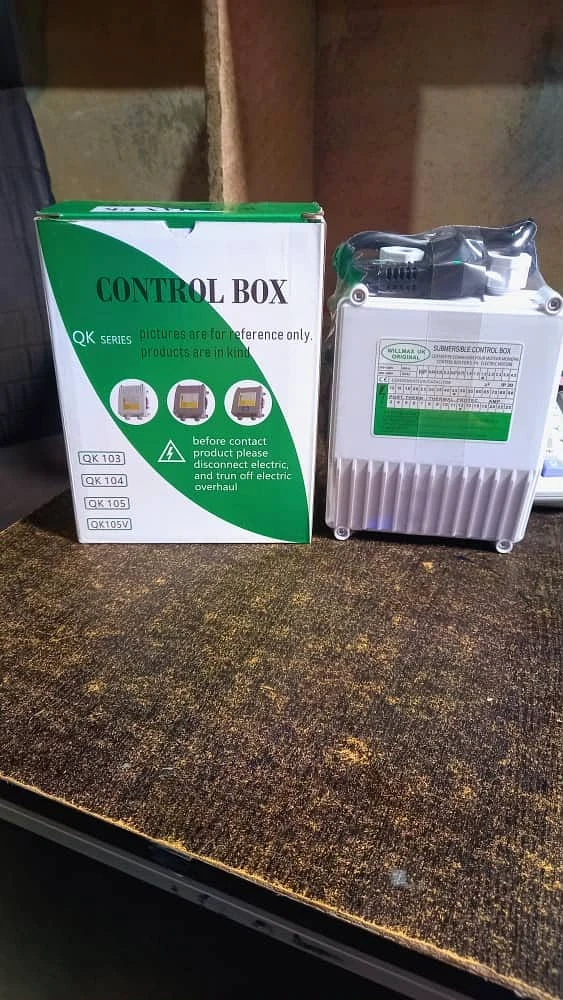

Submersible pump control box, QK series, single phase
Electrical, Motors and Automation
The control box that goes with a single phase submersible borehole pump, carrying the start capacitor, thermal overload and isolating switch in one wall enclosure. Matched to the pump rating so the starting torque and the overload setting are right.
Confirmed on the quotation: Pump rating in horsepower or kW is needed to select the box; confirmed on the quotation.
ConstructionManufacturingElectrical Contracting
Specification
| Reference | SH-PH-094 |
|---|---|
| Series | QK |
| Supply | Single phase |
| Contains | Start capacitor, overload, isolator |
| Mounting | Wall |
