Volt three-phase induction motor, 5.5 kW, 2 pole, IMB34, IE2

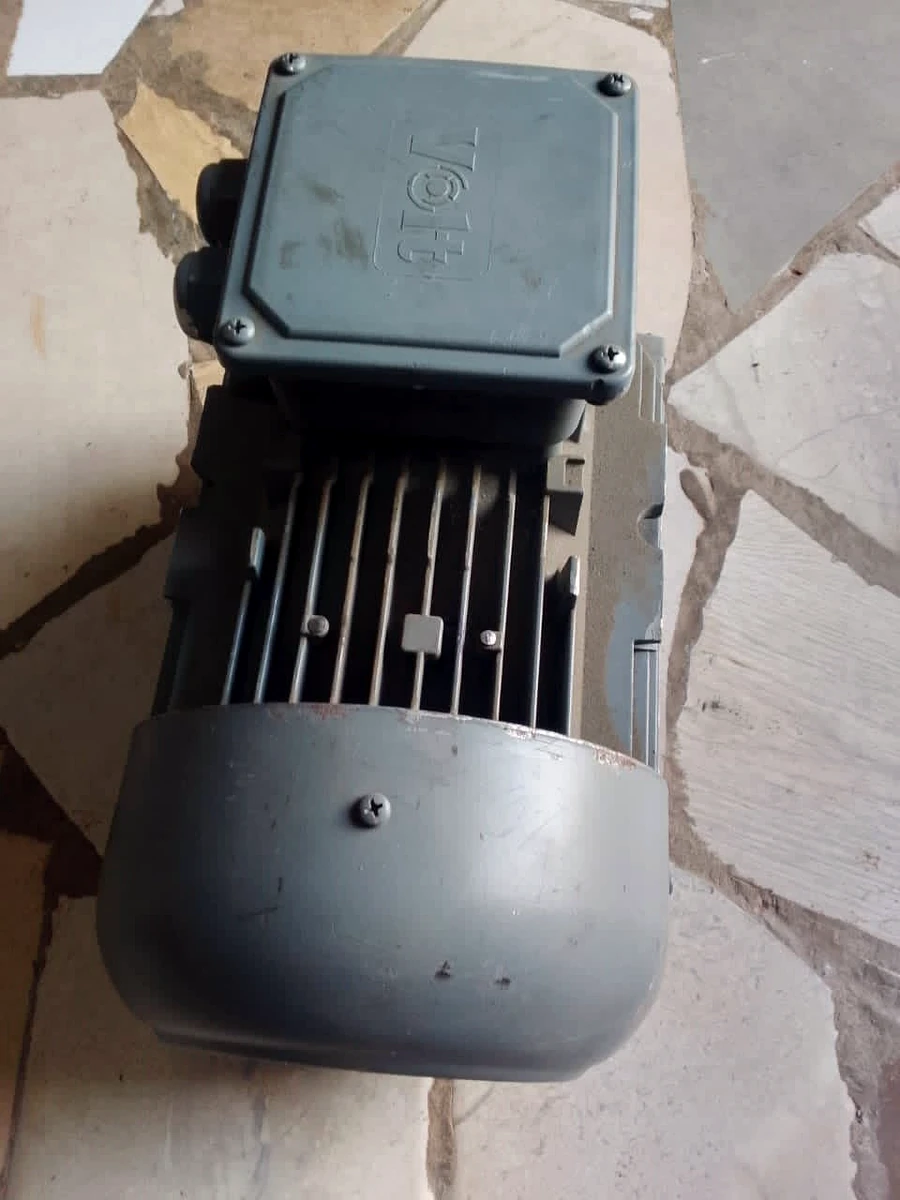

Photograph of the item as received. The make and model supplied are named on the quotation.

SH-PH-096

Volt three-phase induction motor, 5.5 kW, 2 pole, IMB34, IE2

Name: Volt three-phase induction motor, 5.5 kW, 2 pole, IMB34, IE2
Brand: Volt
SKU: SH-PH-096

Volt · Electrical, Motors and Automation

A 5.5 kW two pole squirrel cage motor from Volt Elektrik Motorlari, frame 112M, in the B34 arrangement with both feet and a face flange so it suits a pump, fan or gearbox mounting. Nameplate reads 400 V, 10.1 A, 2900 rpm, IP55, insulation class F and IE2 efficiency at 87.7 per cent.

Ask on WhatsApp Email a request

ManufacturingMining and QuarryingFood and Beverage

Specification

Reference	SH-PH-096
Type	VM C 112-2 / V2EA112M2DB3440YY
Output	5.5 kW at 50 Hz, 6.6 kW at 60 Hz
Speed	2900 rpm at 50 Hz
Supply	400 V, 10.1 A, three phase
Mounting	IMB34, foot and face flange
Protection	IP55, insulation class F
Efficiency	IE2, 87.7 per cent
Standard	IEC 60034
