SH-PH-054

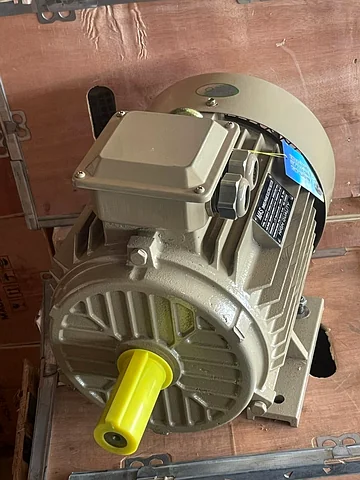

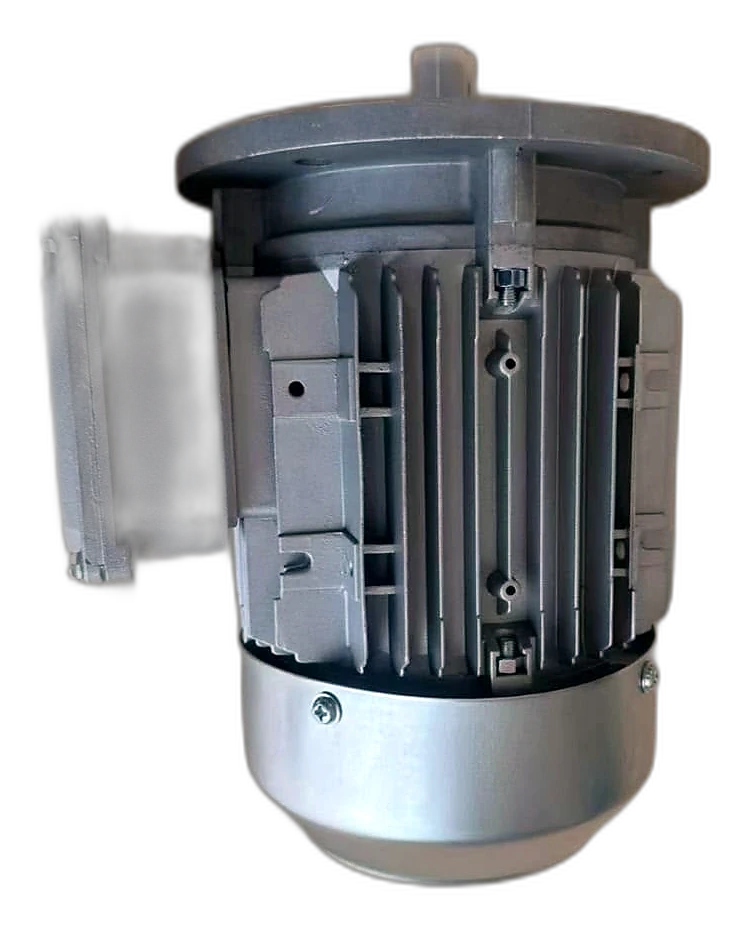

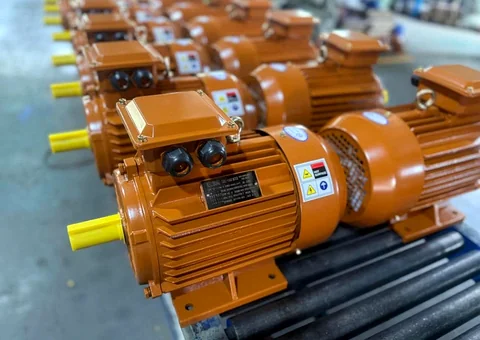

Three-phase induction motor, IEC aluminium frame, B5 flange mount
Electrical, Motors and Automation
IEC standard three-phase motor in an aluminium frame with a B5 flange, the mounting used on pumps, fans and gearboxes with a face-mounted input. Quoted by kW, poles and frame size to match the drive it replaces.
Confirmed on the quotation: Rating in kW, number of poles and frame size.
ManufacturingFood and BeverageWorkshop and Maintenance
Specification
| Reference | SH-PH-054 |
|---|---|
| Standard | IEC 60034 |
| Mounting | B5 flange |
| Frame | Aluminium, 63 to 132 frame |
| Supply | 400 V, 50 Hz, three-phase |
