SH-PH-100

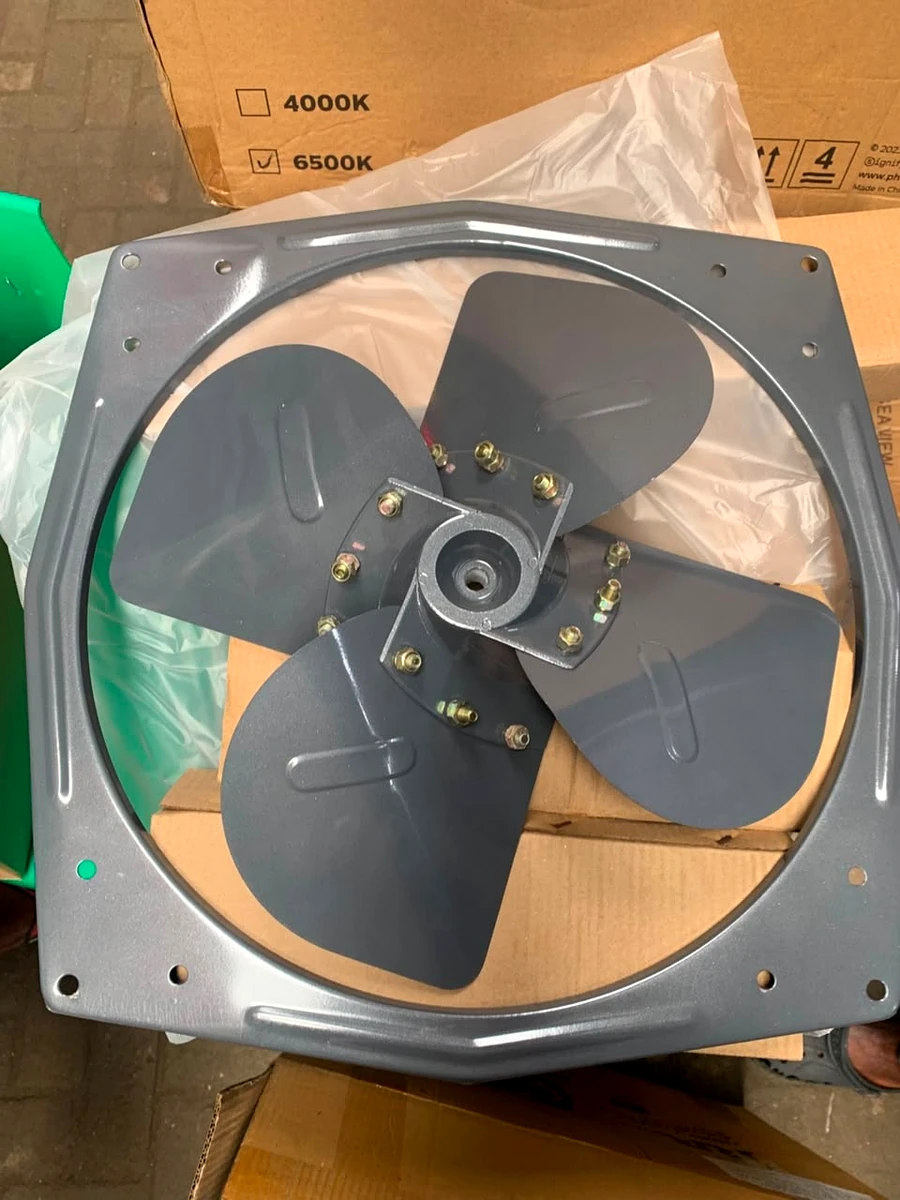

Industrial square-panel wall extract fan, direct drive
Electrical, Motors and Automation

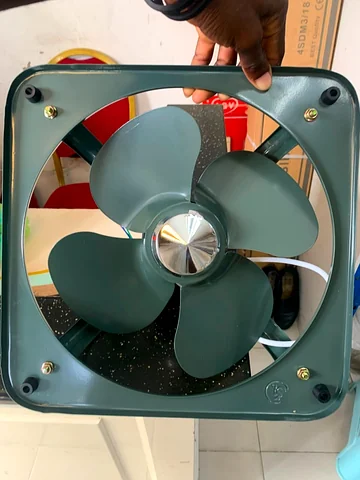

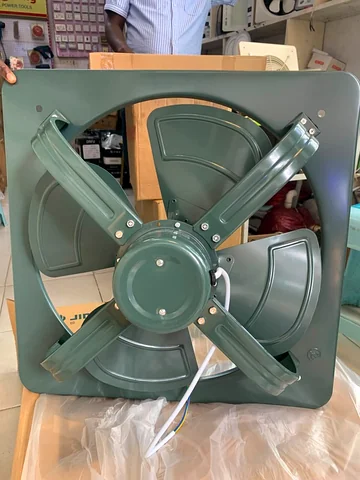

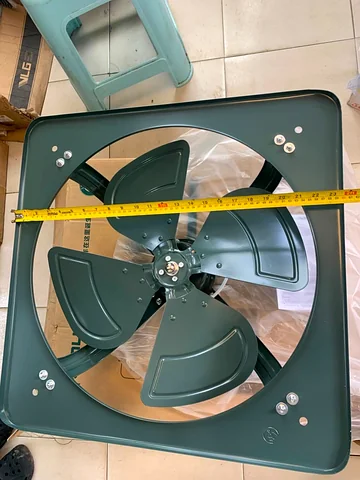

Direct drive extract fans on a pressed steel square panel, the pattern fitted through a wall or a louvre opening in workshops, kitchens and process rooms. Aerofoil steel impellers in three and four blade forms, with a wire guard on the drive side.
Confirmed on the quotation: Panel size, airflow and single or three phase supply are confirmed on the quotation.
ManufacturingFood and BeverageWorkshop and Maintenance
Specification
| Reference | SH-PH-100 |
|---|---|
| Type | Direct drive axial, square panel |
| Impeller | Pressed steel, three or four blade |
| Mounting | Wall or louvre opening |
| Guard | Wire guard fitted |
