SH-PH-090

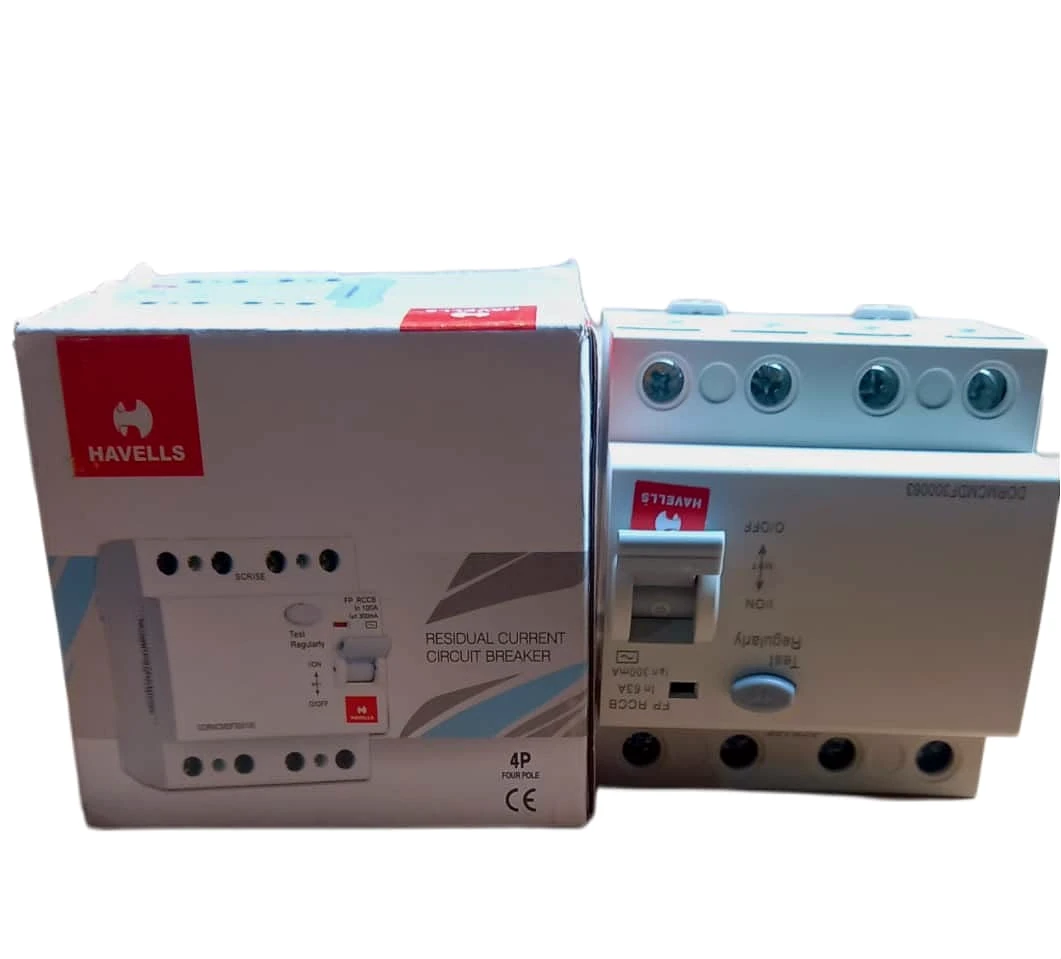

Havells residual current circuit breaker, four pole
Havells · Electrical, Motors and Automation
Four pole residual current breaker for three phase and neutral boards, fitted at the incomer or on a sub-main to give earth leakage protection across the whole group. Test button on the front for the periodic check.
Confirmed on the quotation: Rated current and sensitivity are confirmed on the quotation.
Electrical ContractingManufacturingConstruction
Specification
| Reference | SH-PH-090 |
|---|---|
| Poles | 4, three phase and neutral |
| Mounting | 35 mm DIN rail |
| Test | Front test button |
