SH-PH-051
Single-core PVC insulated copper conductor, H07V-R 2.5 mm², 100 m coil
450/750 V building wire, NF C 32-201, red and black
Photograph of the item as received. The make and model supplied are named on the quotation.
SH-PH-050

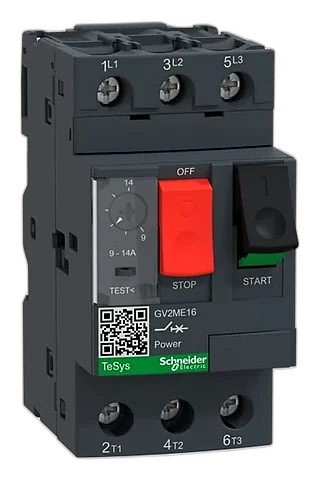

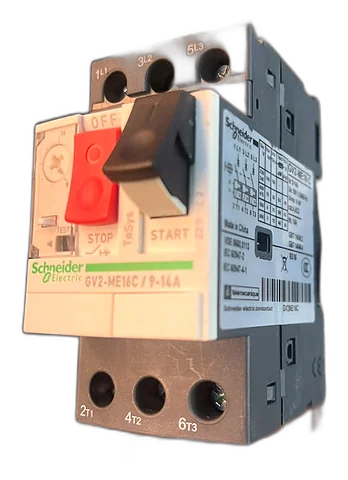

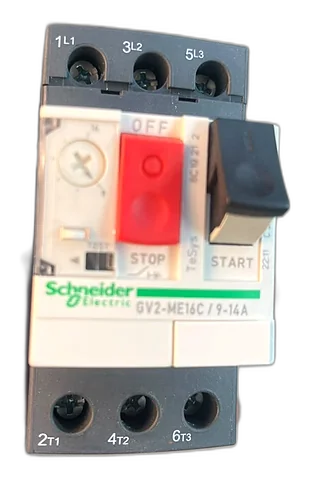

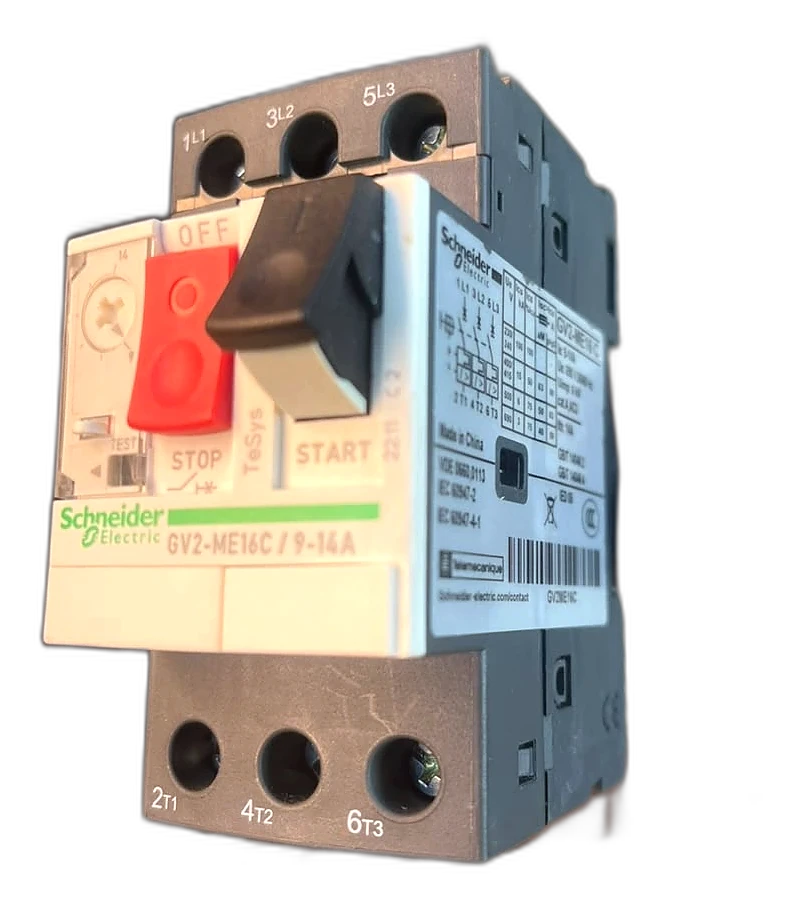

Schneider TeSys GV2ME16 thermal-magnetic motor circuit breaker, 9 to 14 A
Schneider Electric · Electrical, Motors and Automation
Genuine Schneider Electric TeSys GV2ME16 manual motor starter and protection breaker with an adjustable thermal range of 9 to 14 A and fixed magnetic short-circuit protection. Suits three-phase motors of about 5.5 kW at 400 V.
ManufacturingElectrical ContractingFood and Beverage
Specification
| Reference | SH-PH-050 |
|---|---|
| Reference | GV2ME16 |
| Thermal range | 9 to 14 A |
| Poles | 3 |
| Control | Pushbutton start and stop |
| Terminals | Screw clamp |
